Problem
Rural Virginia residents in medically underserved areas lacked reliable broadband, cutting them off from telehealth services, health education platforms, and online training resources.
Community Impact & Needs Analysis
Digital Equity Project — Starlink Rural Deployment
A real-world infrastructure and learning access initiative that brought satellite internet to medically underserved rural Virginia communities — closing the digital divide one household at a time.
Project Snapshot
The core challenge, design approach, and measurable outcomes of
this community health access initiative.
Design Goal
Engineer a scalable satellite internet deployment using Starlink and pair it with plain-language onboarding so community members could immediately access digital health resources.
Outcomes
- Multiple households connected in target service area
- Telehealth access enabled for previously offline residents
- Community partners trained on device and connectivity use
- Blueprint replicable for additional rural deployments
The Challenge: Medical Deserts
Context on what "medical deserts" are and why connectivity is
the first barrier to solving them.
What Is a Medical Desert?
A medical desert is a geographic area where residents lack reasonable access to healthcare providers, pharmacies, or health information. In rural Virginia, this combines with:
- No reliable broadband (speeds under 25 Mbps or no coverage at all)
- Nearest clinic 30–60+ miles away
- Limited transportation options
- Low digital literacy compounding the access gap
Insight: Connectivity is not a luxury — it is the prerequisite for every other health education intervention to work.
Why Starlink?
- Low-earth orbit = lower latency than traditional satellite
- No dependency on terrestrial ISP infrastructure
- Self-install hardware reduces deployment time
- Flat-rate pricing removes variable cost barriers
- Portable dish supports temporary or shared-site deployments
Benefit: A community partner with no IT background can be operational within 30 minutes of hardware arrival.

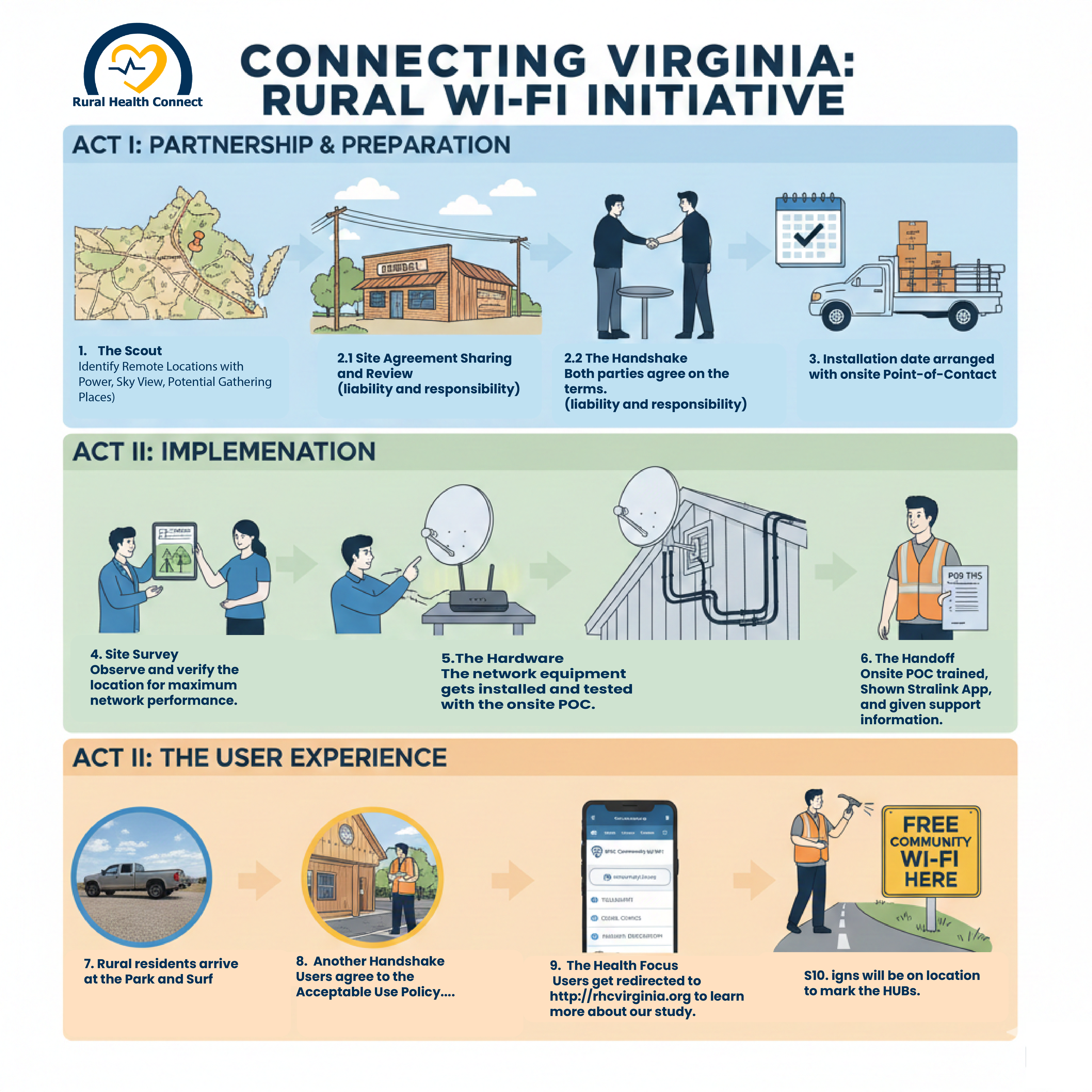

Deployment & Training Process
The step-by-step process from needs assessment to
post-deployment community training — applying the ADDIE model in
a field context.
1. Analyze
Conducted site surveys and partner interviews to map coverage gaps, identify the highest-need households, and document existing device availability.
2. Design
Created a network topology for each site. Designed plain-language quick-start guides and a short orientation session for community partners who would support ongoing use.
3. Develop

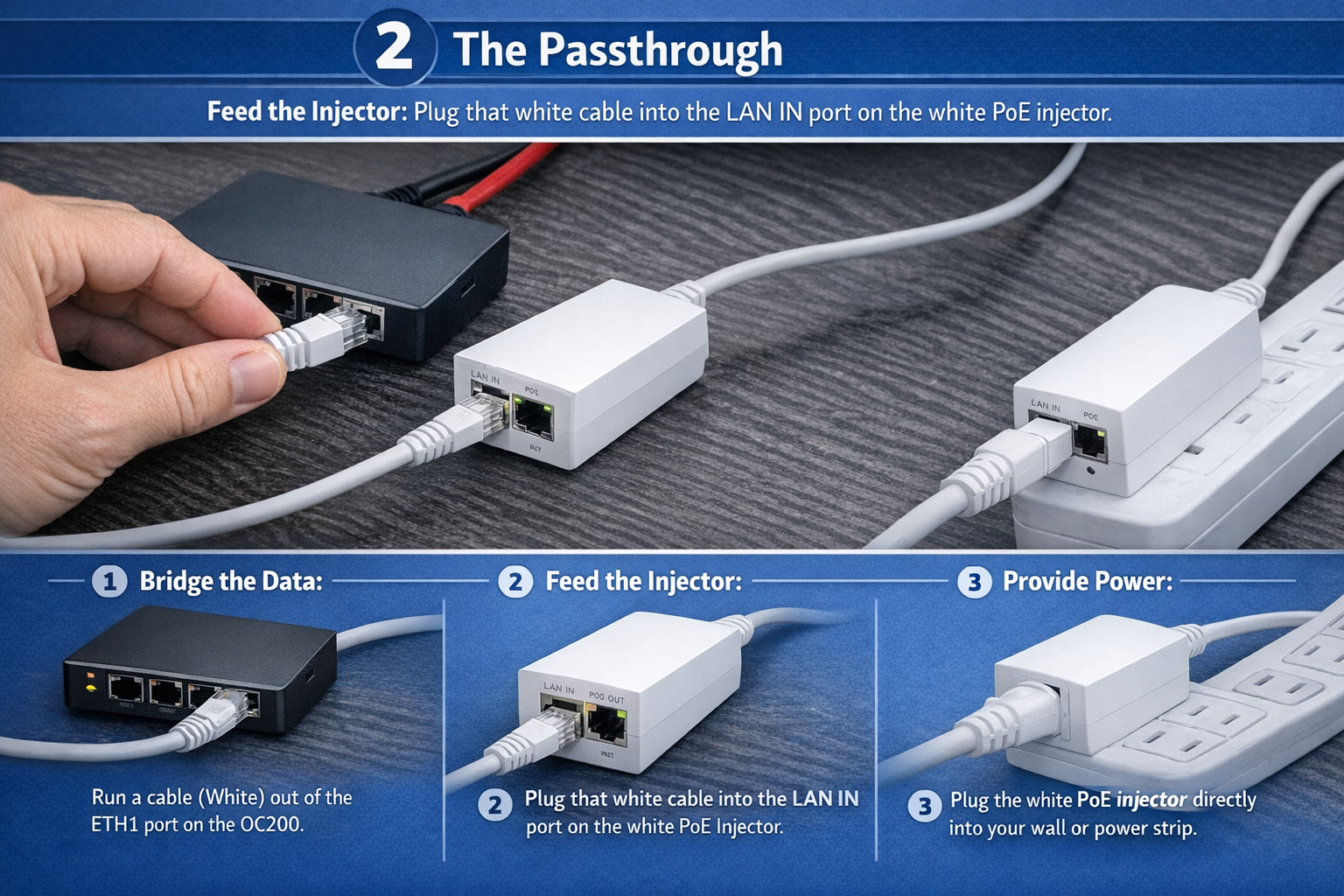

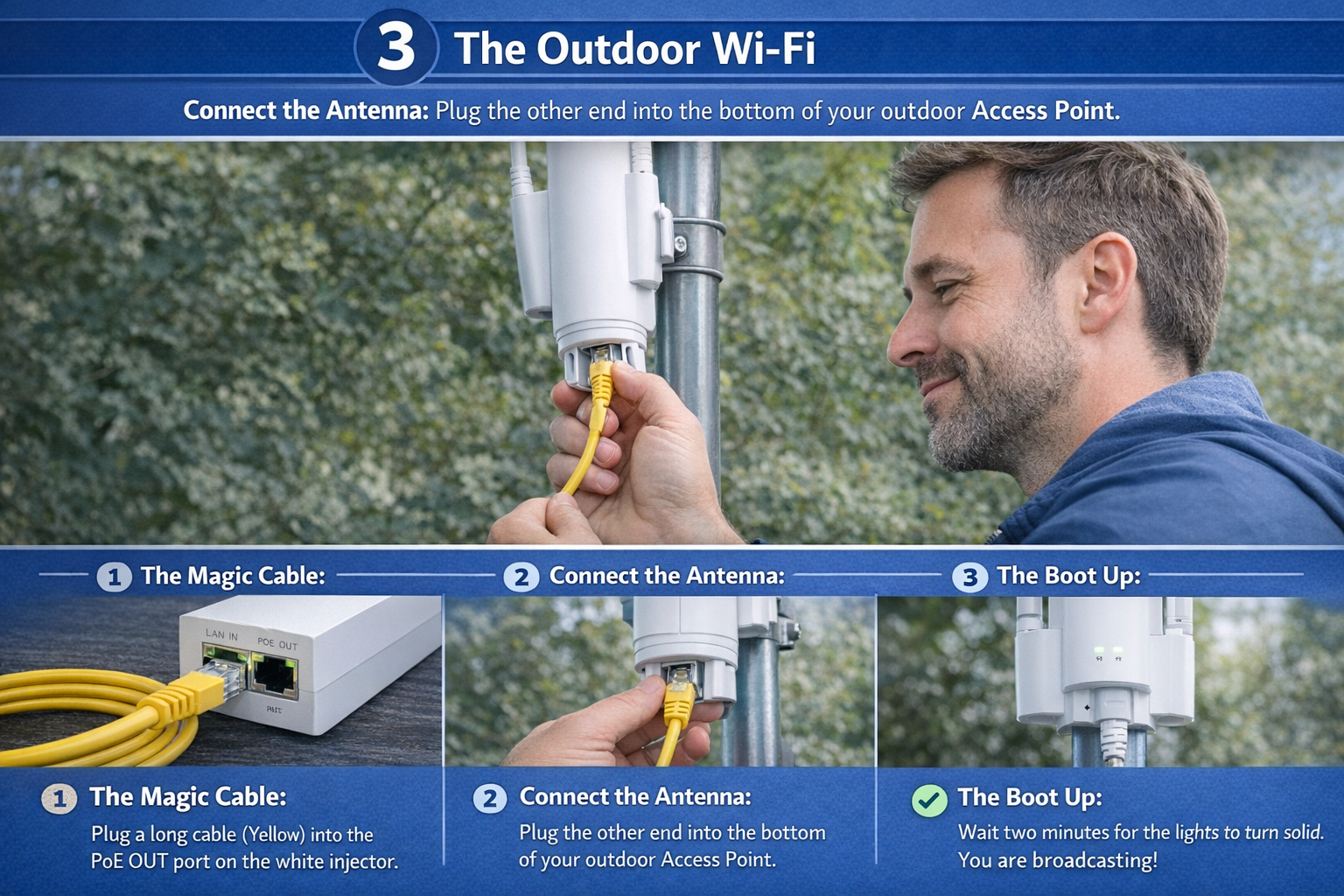

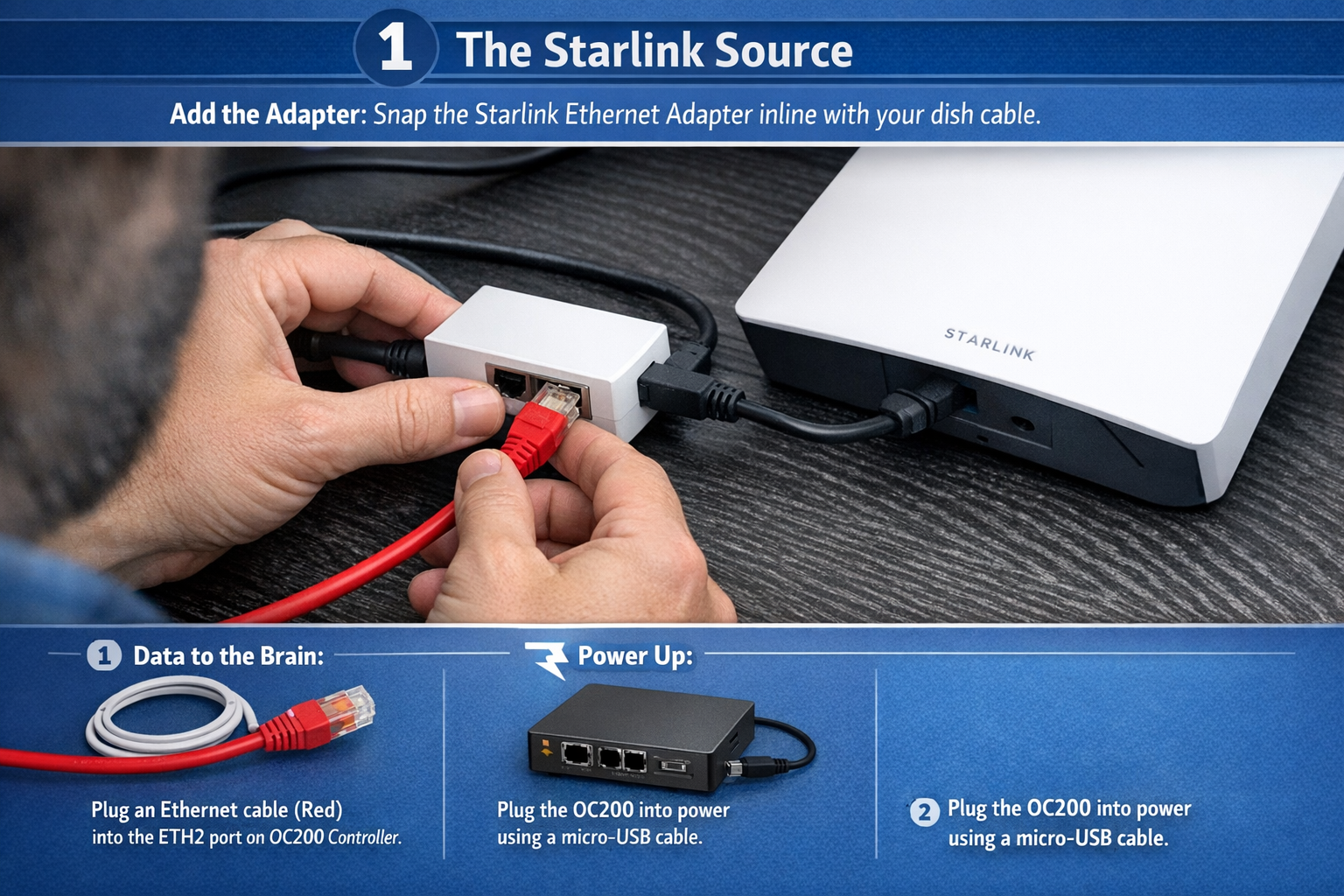

Procured and staged hardware. Produced illustrated setup guides in Adobe Illustrator mapped to low-literacy and ESL audiences.
4. Implement

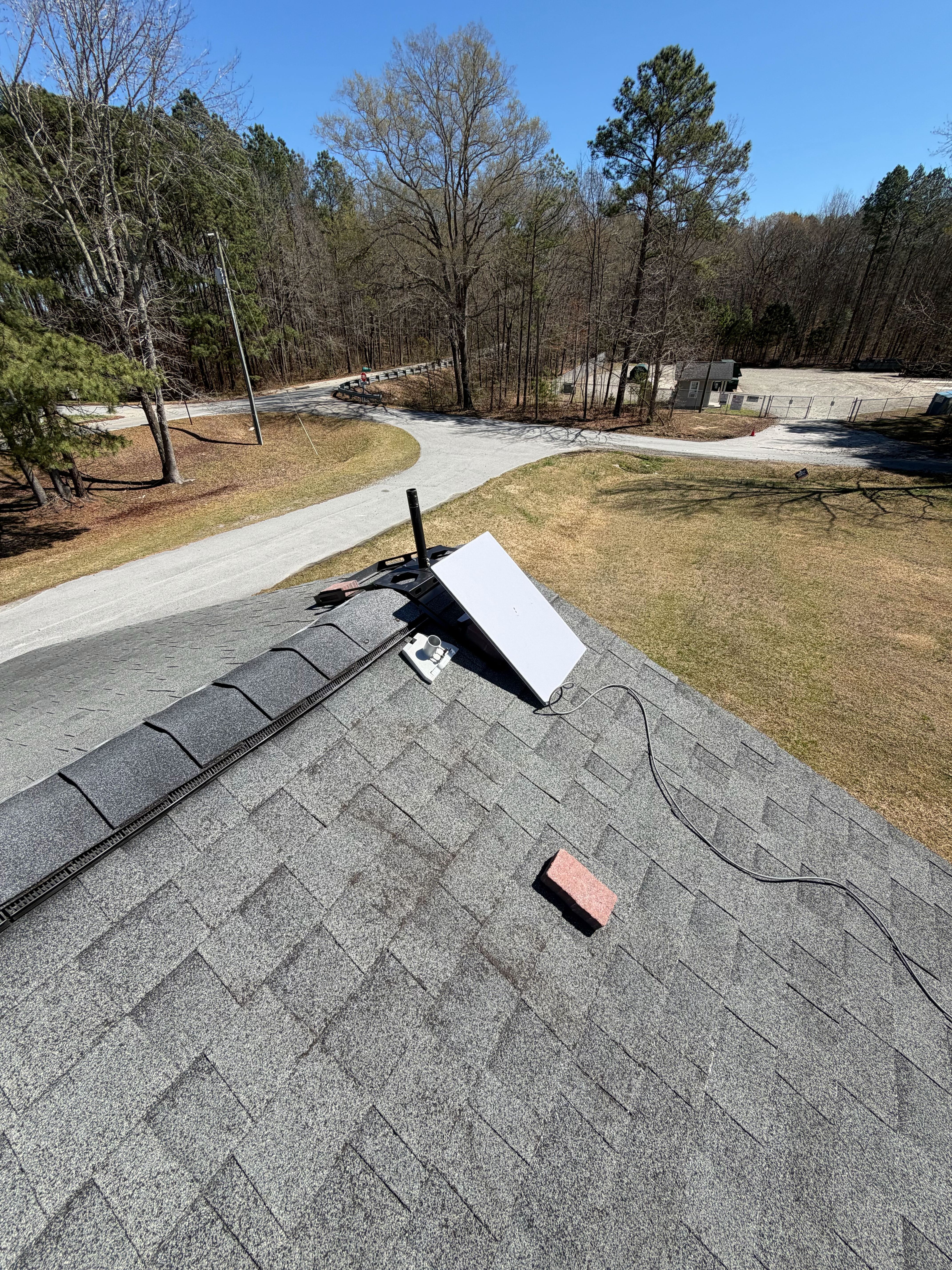

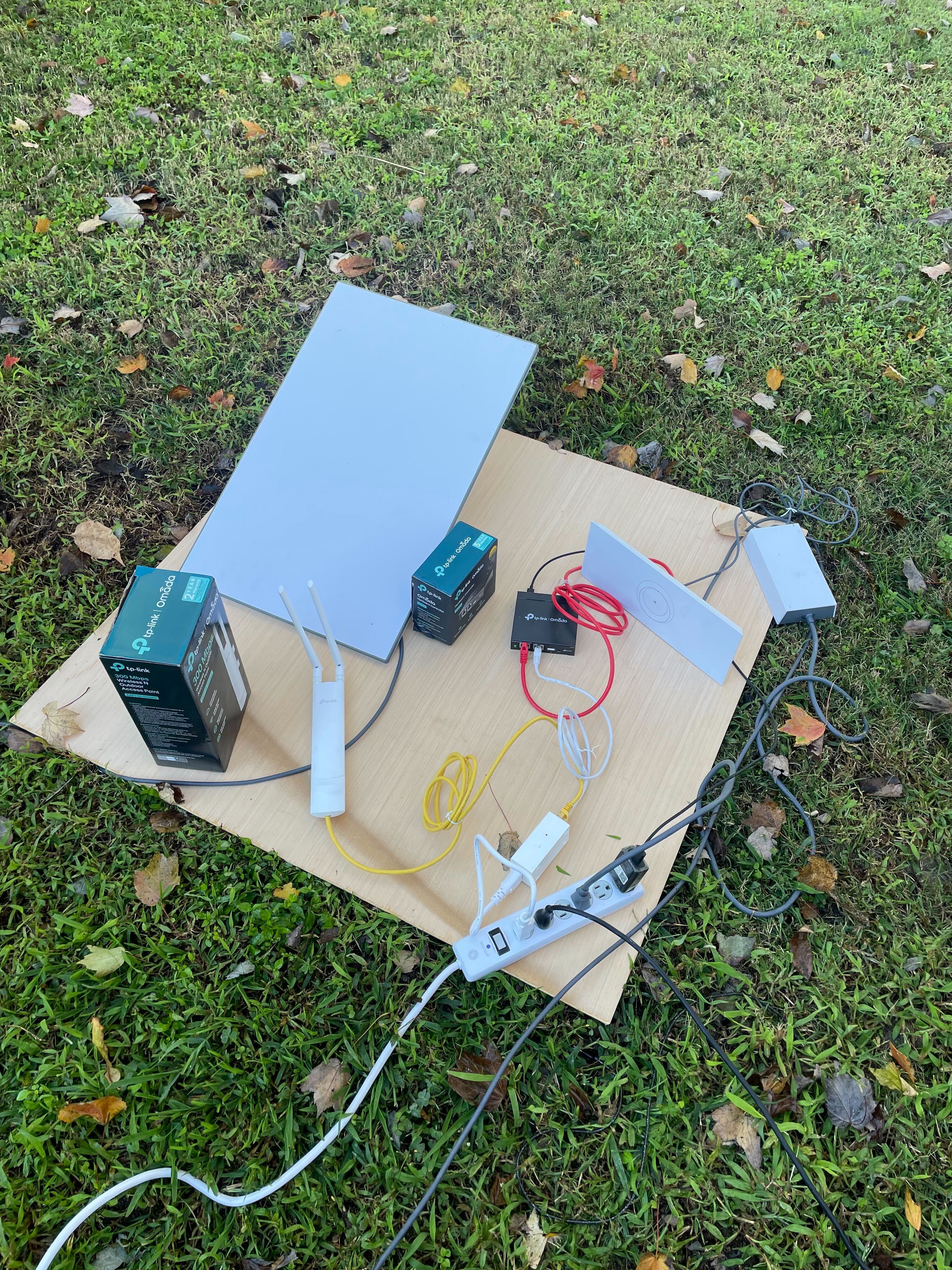

Deployed dishes, configured local networks, and delivered on-site orientation training to community partners and residents.
5. Evaluate
Gathered post-deployment feedback on usability, connection reliability, and telehealth access. Used results to refine the guide and inform future sites.
ID Connection: Why This Is a Learning Project
Needs Analysis in the Field
Before any content could be designed, the real barrier had to be identified: it was not knowledge gaps — it was access gaps. This project applied front-end analysis to uncover that the learner audience literally could not reach the learning environment. Solving the infrastructure problem was the instructional design intervention.
Transfer-Focused Job Aids
The setup guides and orientation sessions were designed for immediate transfer. Plain-language instructions, numbered steps, and visual callouts ensured community members could self-support after the initial deployment — reducing dependency on ongoing technical assistance.
